• Rear axle, 3.42 ratio

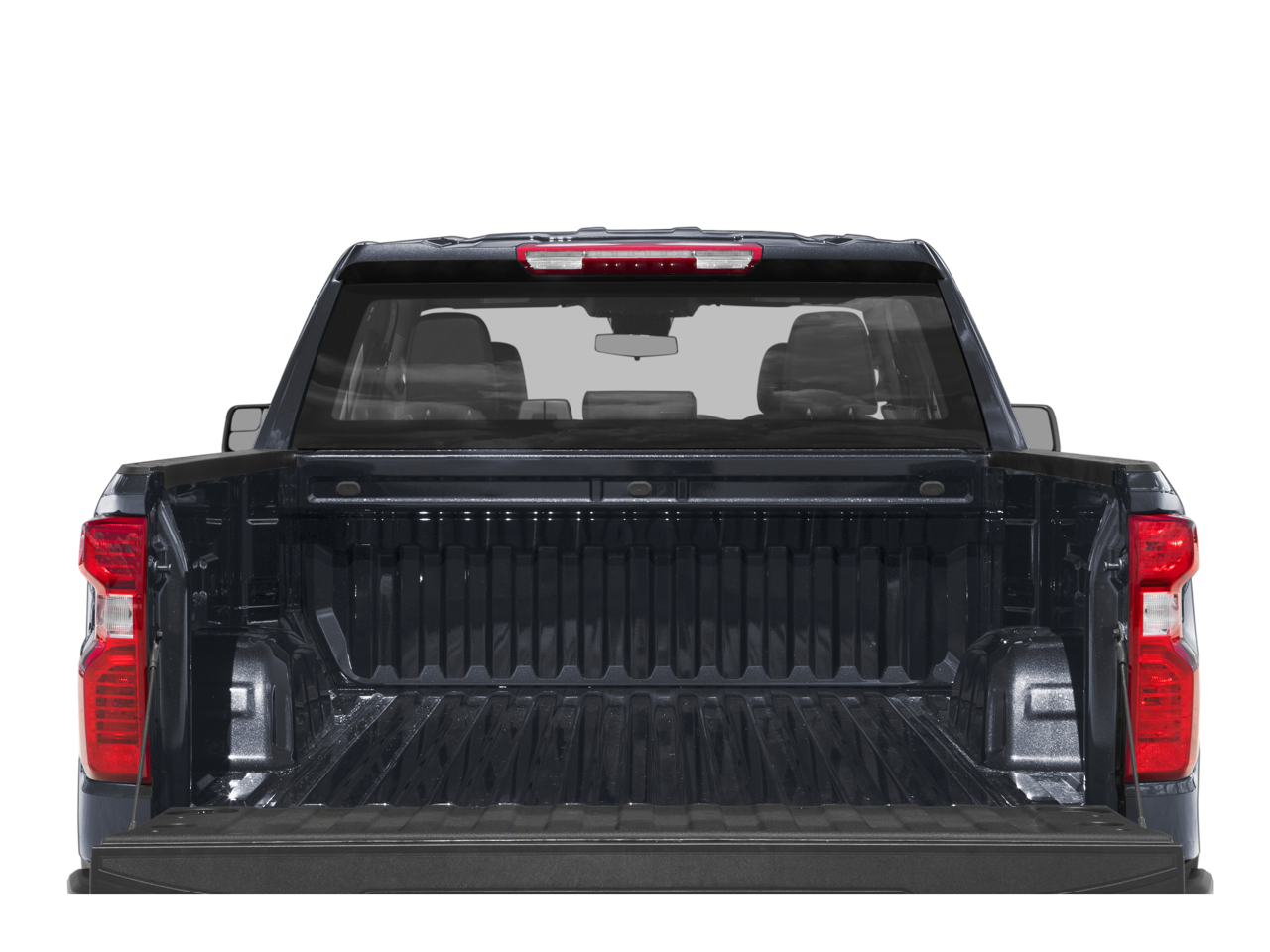

• Durabed, pickup bed
• Push Button Start
• Automatic Stop/Start
• Transfer case, single speed electronic Autotrac with push button control (4WD models only)
• Four wheel drive
• Battery, heavy-duty 730 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Frame, fully-boxed, hydroformed front section
• Suspension Package, Standard
• Steering, Electric Power Steering (EPS) assist, rack-and-pinion
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Brake lining wear indicator
• Capless Fuel Fill
• Exhaust, single outlet

• Wheels, 17" x 8" (43.2 cm x 20.3 cm) Ultra Silver painted steel
• Tires, 255/70R17 all-season, blackwall
• Tire, spare 255/70R17 all-season, blackwall (Included with (QBN) 255/70R17 all-season, blackwall tires.)
• Wheel, 17" x 8" (43.2 cm x 20.3 cm) full-size, steel spare
• Tire carrier lock, keyed cylinder lock that utilizes same key as ignition and door
• Bumpers, front, Black (semi-gloss)
• Bumpers, rear, Black (semi-gloss)
• CornerStep, rear bumper
• Recovery hooks, front, frame-mounted, Black (Included with 4WD models or on 2WD models with (PQA) WT Safety Package. Available free flow on 2WD models.)
• Cargo tie downs (12), fixed rated at 500 lbs per corner
• Headlamps, halogen reflector with halogen Daytime Running Lamps
• IntelliBeam, automatic high beam on/off
• Lamps, cargo area, cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel (incandescent on Regular Cab models, LED on Crew Cab and Double Cab models)
• Taillamps with incandescent tail, stop and reverse lights
• Mirrors, outside manual, Black (Standard on Crew Cab and Double Cab models only. Not available on Regular Cab models.)
• Glass, solar absorbing, tinted
• Door handles, Black
• Tailgate and bed rail protection cap, top

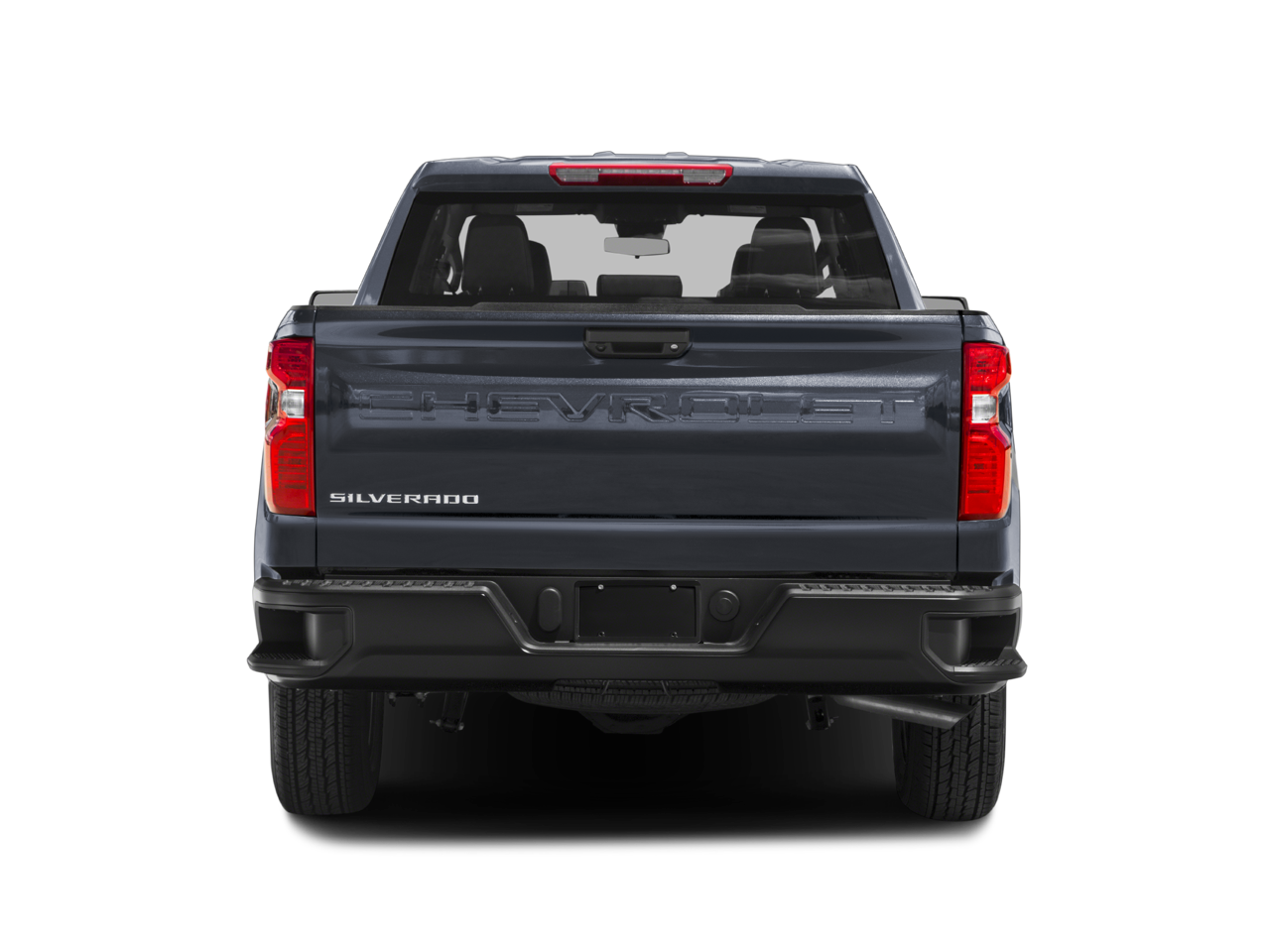

• Tailgate, standard
• Tailgate, locking utilizes same key as ignition and door (Removed when (QT5) EZ Lift power lock and release tailgate is ordered.)
• Tailgate, gate function manual, no EZ Lift

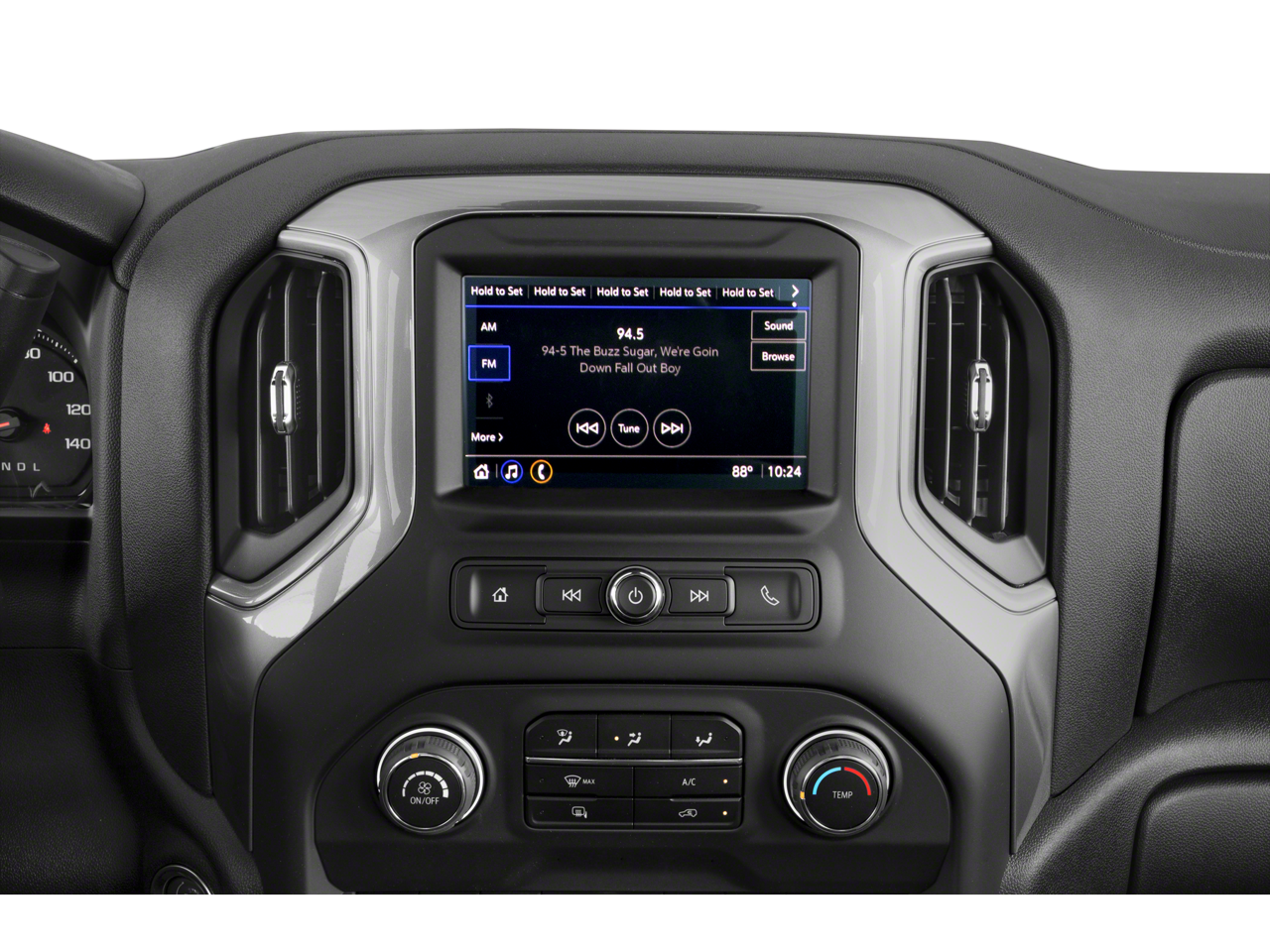

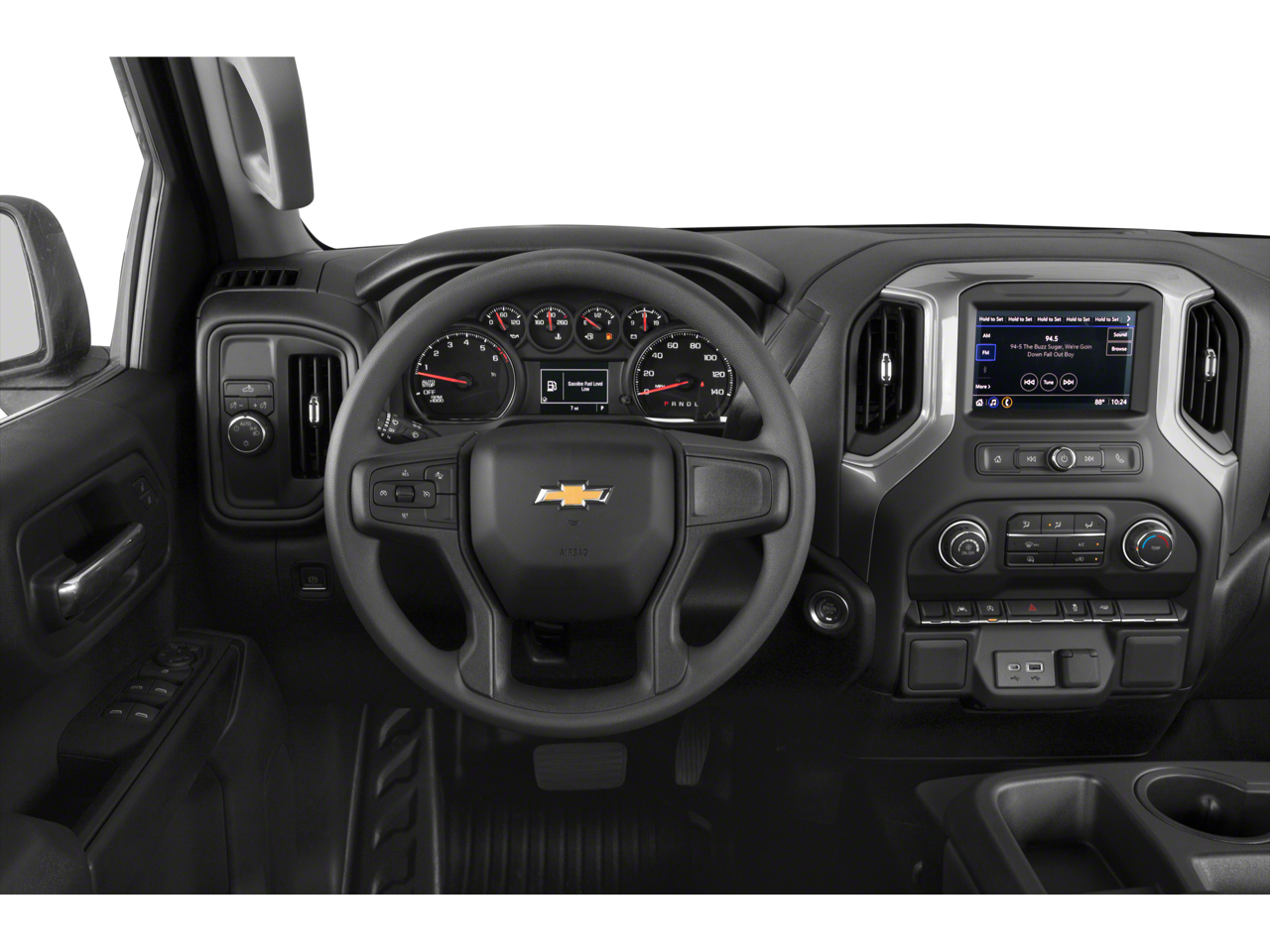

• Audio system, Chevrolet Infotainment 3 system 7" diagonal color touchscreen, AM/FM stereo. Additional features for compatible phones include: Bluetooth® audio streaming for 2 active devices, voice command pass-through to phone, wired Apple CarPlay and Android Auto capable.
• Audio system feature, 6-speaker system (Requires Crew Cab or Double Cab model.)
• Bluetooth® for phone, connectivity to vehicle infotainment system

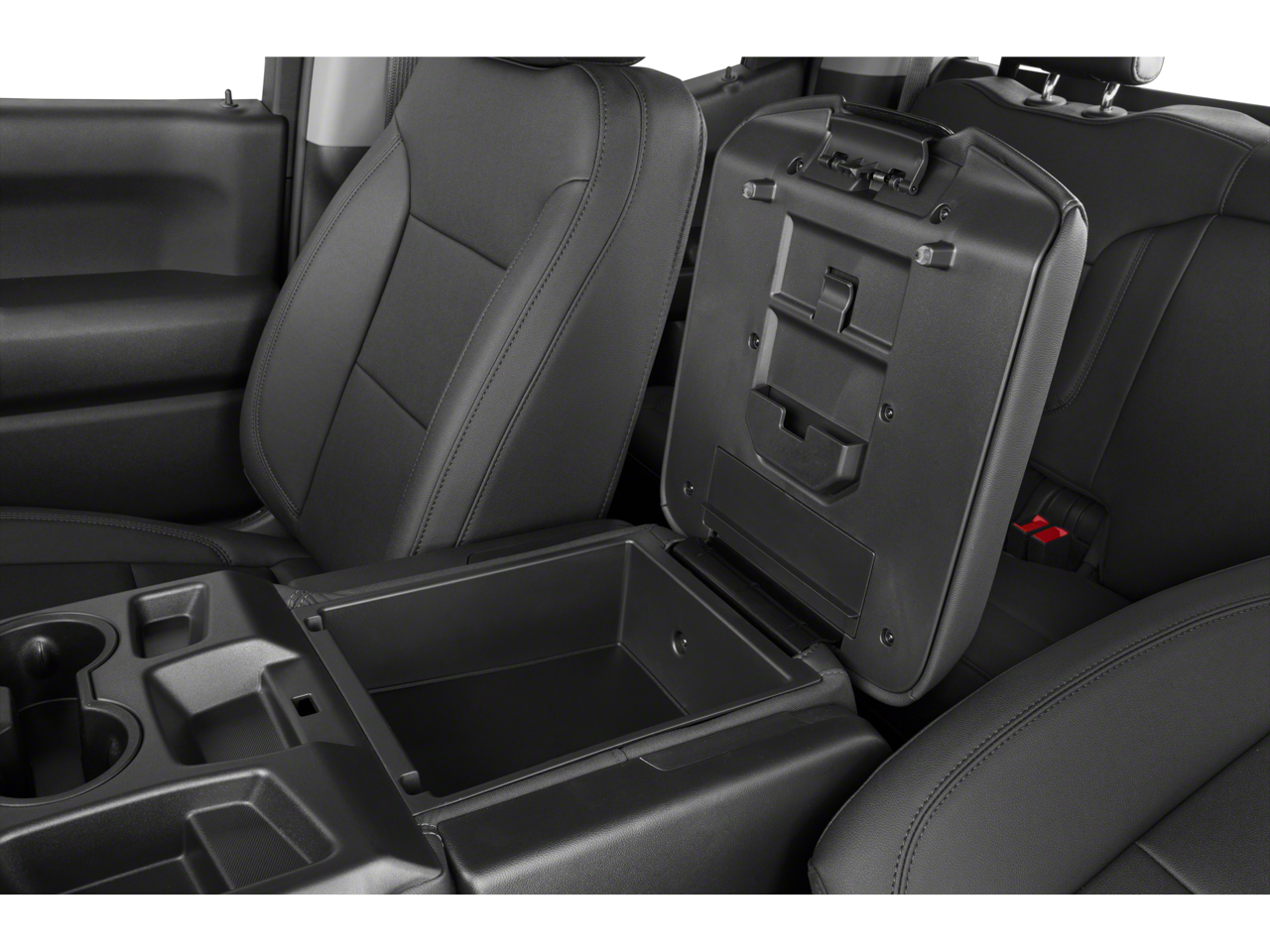

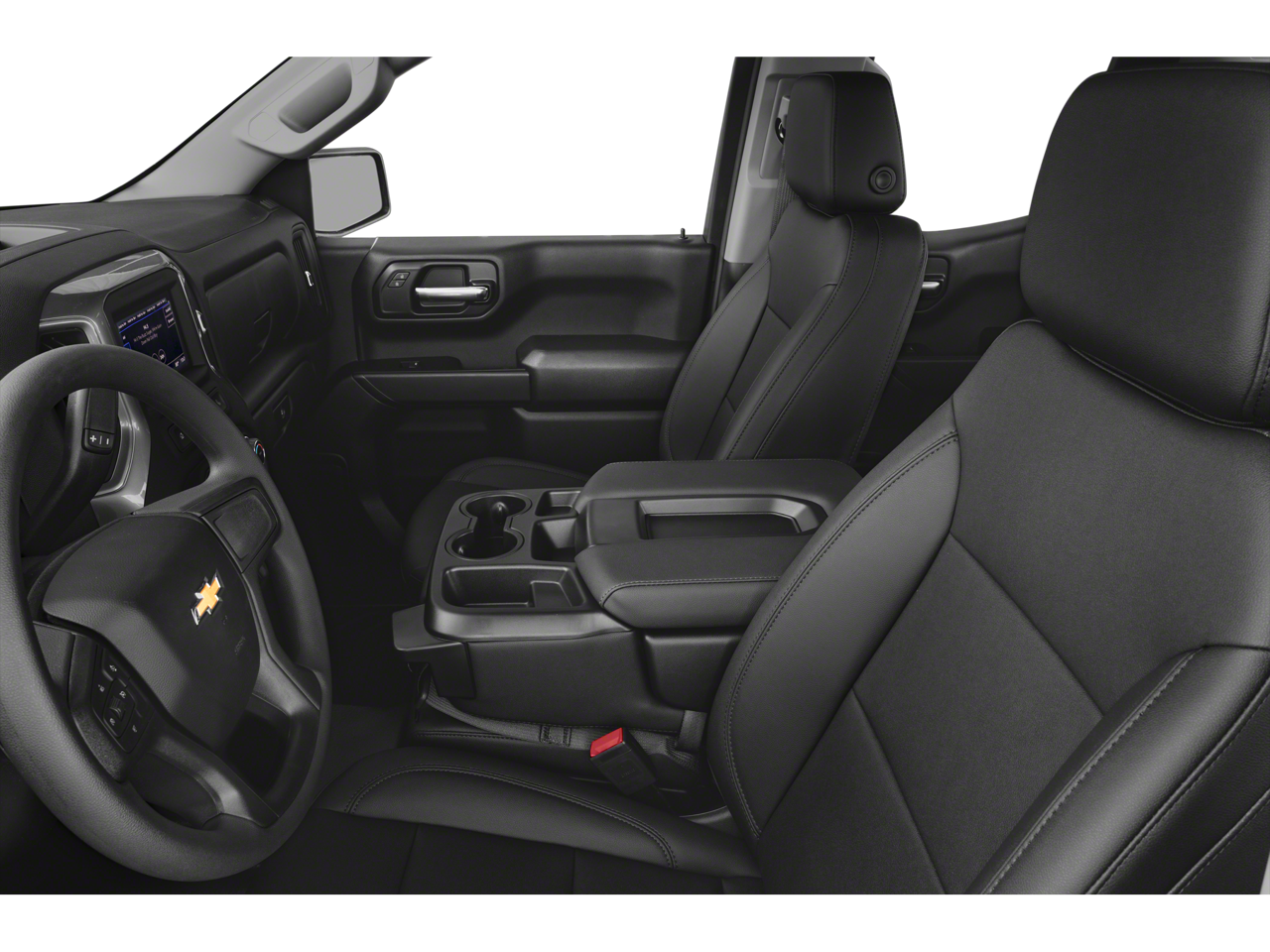

• Seats, front 40/20/40 split-bench with covered armrest storage and under-seat storage (lockable)
• Seat trim, Vinyl
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual

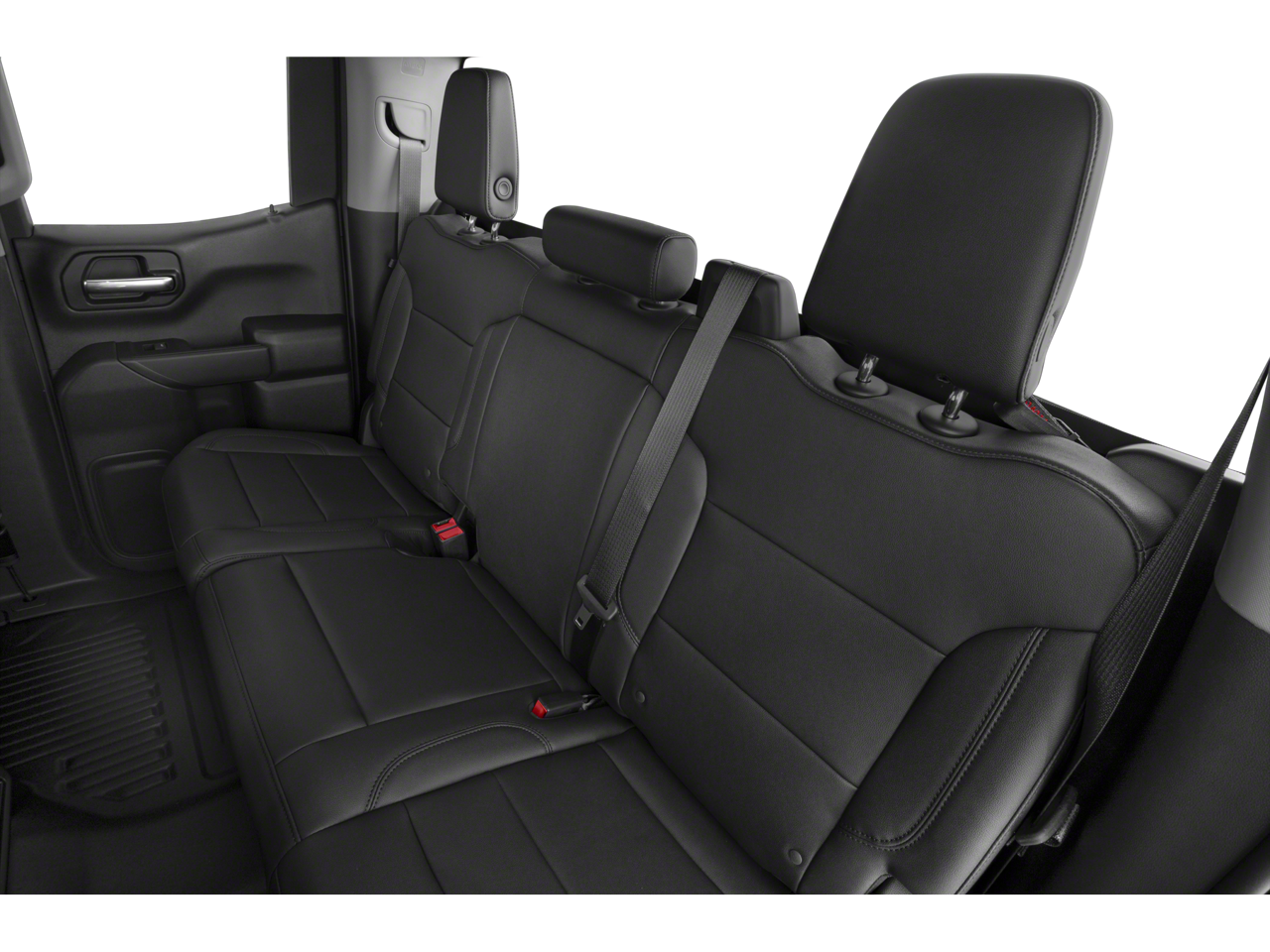

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor) (Requires Crew Cab or Double Cab model.)
• Floor covering, rubberized-vinyl (Not available with LPO floor liners.)
• Steering wheel, urethane
• Steering column, Tilt-Wheel, manual with wheel locking security feature
• Driver Information Center, 3.5" diagonal monochromatic display
• Exterior Temperature Display located in radio display
• Rear Seat Reminder (Requires Crew Cab or Double Cab model.)
• Window, power front, drivers express up/down
• Window, power front, passenger express down
• Windows, power rear, express down (Not available with Regular Cab models.)
• Door locks, power
• Remote Keyless Entry, with 2 transmitters
• Power outlet, front auxiliary, 12-volt
• USB Ports, 2, Charge/Data ports located on instrument panel
• Air conditioning, single-zone manual
• Air vents, rear, heating/cooling (Not available on Regular Cab models.)
• Mirror, inside rearview, manual tilt
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted

• Automatic Emergency Braking
• Front Pedestrian Braking
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Airbags, dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• HD Rear Vision Camera
• Lane Keep Assist with Lane Departure Warning
• Following Distance Indicator
• Forward Collision Alert
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Buckle to Drive prevents vehicle from being shifted out of Park until driver seat belt is fastened; times out after 20 seconds and encourages seat belt use, can be turned on and off in Settings menu
• Tire Pressure Monitoring System, auto learn includes Tire Fill Alert (does not apply to spare tire)

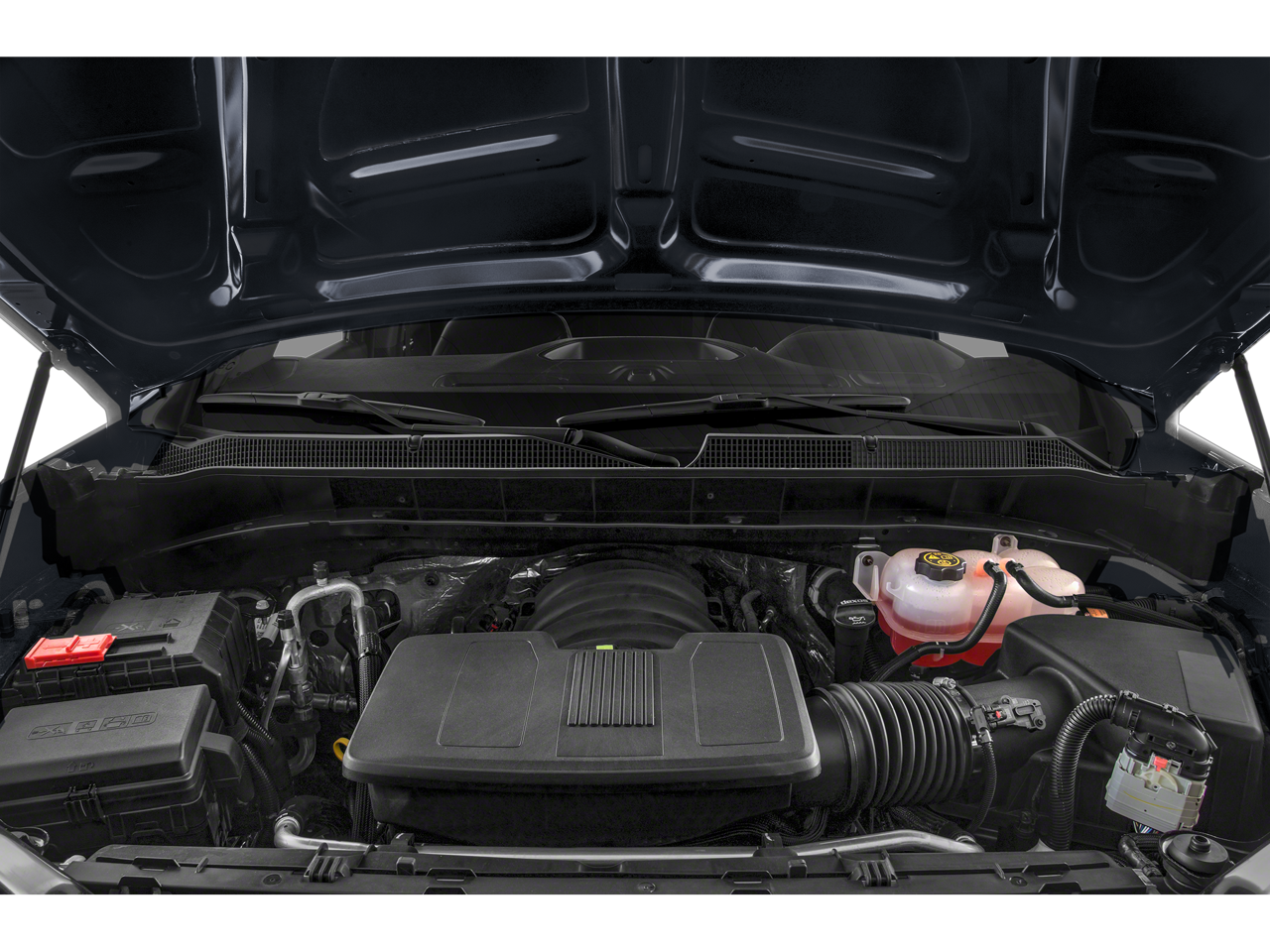

ENGINE, 2.7L TURBO HIGH-OUTPUT

• (310 hp [231 kW] @ 5600 rpm
• 430 lb-ft of torque [583 Nm] @ 3000 rpm) (STD)

• Rear Integrated Corner Step Bumper Detail
• Coolant Temperature Warning Warnings And Reminders
• Low Oil Pressure Warnings And Reminders
• Lamp Failure Warnings And Reminders
• USB Front Power Outlet(s)
• Front Automatic Emergency Braking
• Front Pedestrian Automatic Emergency Braking
• Pedestrian Detection Pre-collision Warning System
• 3.5 In. Instrument Cluster Screen Size
• 7 In. Infotainment Screen Size
• Chevrolet Infotainment System Infotainment
• Check Rear Seat Reminder
• Android Auto Smartphone Integration
• Apple CarPlay Smartphone Integration
• Part Time W/ On Demand Setting 4WD Type
• Lane Keeping Assist
• Visual Warning Pre-collision Warning System
• Audible Warning Pre-collision Warning System
• Google Search Connected In-car Apps
• Google POIs Connected In-car Apps
• Voice Operated Electronic Messaging Assistance
• With Read Function Electronic Messaging Assistance
• Auto Start/stop
• Active Grille Shutters
• Touch Screen Display Radio
• Bluetooth® Auxiliary Audio Input
• In Dash Rearview Monitor
• Low Battery Warnings And Reminders
• Twin-tube Gas Front Shock Type
• Programmable Safety Key
• Front Emergency Locking Retractors
• In Seat Cushion Storage
• IPod/iPhone Auxiliary Audio Input
• Black Front Bumper Color
• Trip Odometer
• Auto On/off Headlights
• Upper And Lower Control Arms Front Suspension Type
• 3-point Front Seatbelts
• 3-point Rear Seatbelts
• Diameter 33 Mm Front Stabilizer Bar
• Capless Fuel Filler System
• Auto Delay Off Headlights
• Lane Deviation Sensors
• Wiper Activated Headlights
• Door Pockets Storage
• Front Seatback Storage
• Range Fuel Economy Display
• MPG Fuel Economy Display
• USB Auxiliary Audio Input
• Urethane Steering Wheel Trim
• Sun Visors
• 730 CCA Battery Rating
• Maintenance-free Battery
• Foldable Rear Headrests
• Oil Pressure Gauge
• Front Struts
• Auto-locking Power Door Locks
• Black Grille Color
• Removable Tailgate
• Air Filtration
• Folds Up Rear Seat Folding
• Rear Assist Handle
• Reclining Passenger Seat Manual Adjustments
• Reclining Driver Seat Manual Adjustments
• Rubber/vinyl Floor Material
• Manual Folding Side Mirror Adjustments
• Twin-tube Gas Rear Shock Type
• Adjustable Front Headrests
• 12V Front Power Outlet(s)
• Front Seatbelt Warning Sensor
• Full-size Spare Tire Size
• Push-button Start
• Roll Stability Control
• Heavy Duty Battery
• Multi-function Display
• Battery Saver
• Solar-tinted Glass
• Front Center Armrests
• Rearview Camera System
• Auto Off Electronic Parking Brake
• External Temperature Display
• Speed Sensitive Volume Control
• Power Brakes
• Digital Odometer
• Hill Holder Control
• Manual Day/night Rearview Mirror
• Front Air Conditioning
• Low Fuel Level Warnings And Reminders
• Tie-down Anchors Pickup Bed Cargo Management
• Lockout Button Power Windows
• Safety Reverse Power Windows
• Radio Data System
• Pickup Bed Light
• Black Mirror Color
• Black Door Handle Color
• Multi-leaf Rear Suspension Type
• 4-wheel ABS
• Tow/Haul Mode
• Maintenance Due Warnings And Reminders
• Panic Alarm Multi-function Remote
• Keyless Entry Multi-function Remote
• Electronic Brakeforce Distribution
• Vehicle Immobilizer Anti-theft System
• LATCH System Child Seat Anchors
• Child Safety Door Locks
• Anti-lockout Power Door Locks
• Tire Pressure Monitoring System
• Variable Intermittent Front Wipers
• Power Steering
• Tachometer Gauge
• Traction Control
• Stability Control
• Front Side Curtain Airbags
• Braking Assist
• Dual Front Airbags
• Powertrain Hour Meter
• Trailer Stability Control
• Black Window Trim
• Black Rear Bumper Color
• Front Assist Handle
• Clock
• Vinyl Upholstery
• 60-40 Split Bench Rear Seat Type
• AM/FM Radio
• 6 Total Speakers
• Ventilated Disc Front Brake Type
• 40-20-40 Split Bench Front Seat Type
• Front Reading Lights
• Steel Spare Wheel Type
• Second Row Rear Vents
• Underbody Spare Tire Mount Location
• 2 Front Headrests
• Voice Operated Hands-free Phone Call Integration
• Manual Side Mirror Adjustments
• Electronic 4WD Selector
• Bluetooth® Wireless Data Link
• 4 Passenger Seat Manual Adjustments
• Coil Front Spring Type
• Front Tow Hooks
• 4 Driver Seat Manual Adjustments
• 4 One-touch Windows
• 3 Rear Headrests
• Front Seatbelt Pretensioners
• Leaf Rear Spring Type
• Single Front Air Conditioning Zones
• Mast Antenna Type
• Halogen Headlights
• Rear Side Curtain Airbags
• Spare Only Wheel Locks
• Solid Live Axle Rear Suspension Classification
• Tilt Steering Wheel
• Front Side Airbags
• Daytime Running Lights
• Front Cupholders
• Auto High Beam Dimmer Headlights
• Independent Front Suspension Classification
• Ventilated Disc Rear Brake Type
• Occupant Sensing Passenger Airbag Deactivation

• Mileage
• Fuel Economy Est-Combined (MPG): 18
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 20
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 220
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): - TBD -
• Gross Axle Wt Rating - Rear (lbs): - TBD -
• Curb Weight - Front (lbs): 2878
• Curb Weight - Rear (lbs): 1939
• Gross Vehicle Weight Rating Cap (lbs): 7000
• Gross Combined Wt Rating (lbs): 14500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 900
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 8900
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2225
• Maximum Trailering Capacity (lbs): 9500
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Solid Axle
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.5 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: QBN
• Rear Tire Order Code: QBN
• Spare Tire Order Code: QBR
• Front Tire Size: 255/70R17
• Rear Tire Size: 255/70R17
• Spare Tire Size: 255/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x 8
• Rear Wheel Size (in): 17 x 8
• Spare Wheel Size (in): 17 x 8
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.3
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Box Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 24
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 147.45
• Length, Overall (in): 231.88
• Width, Max w/o mirrors (in): 81.24
• Height, Overall (in): 75.63
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.08
• Ground Clearance, Rear (in): 8.08
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 79.44
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.63
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 71.7
• Ext'd Cab Cargo Volume (ft³): - TBD -

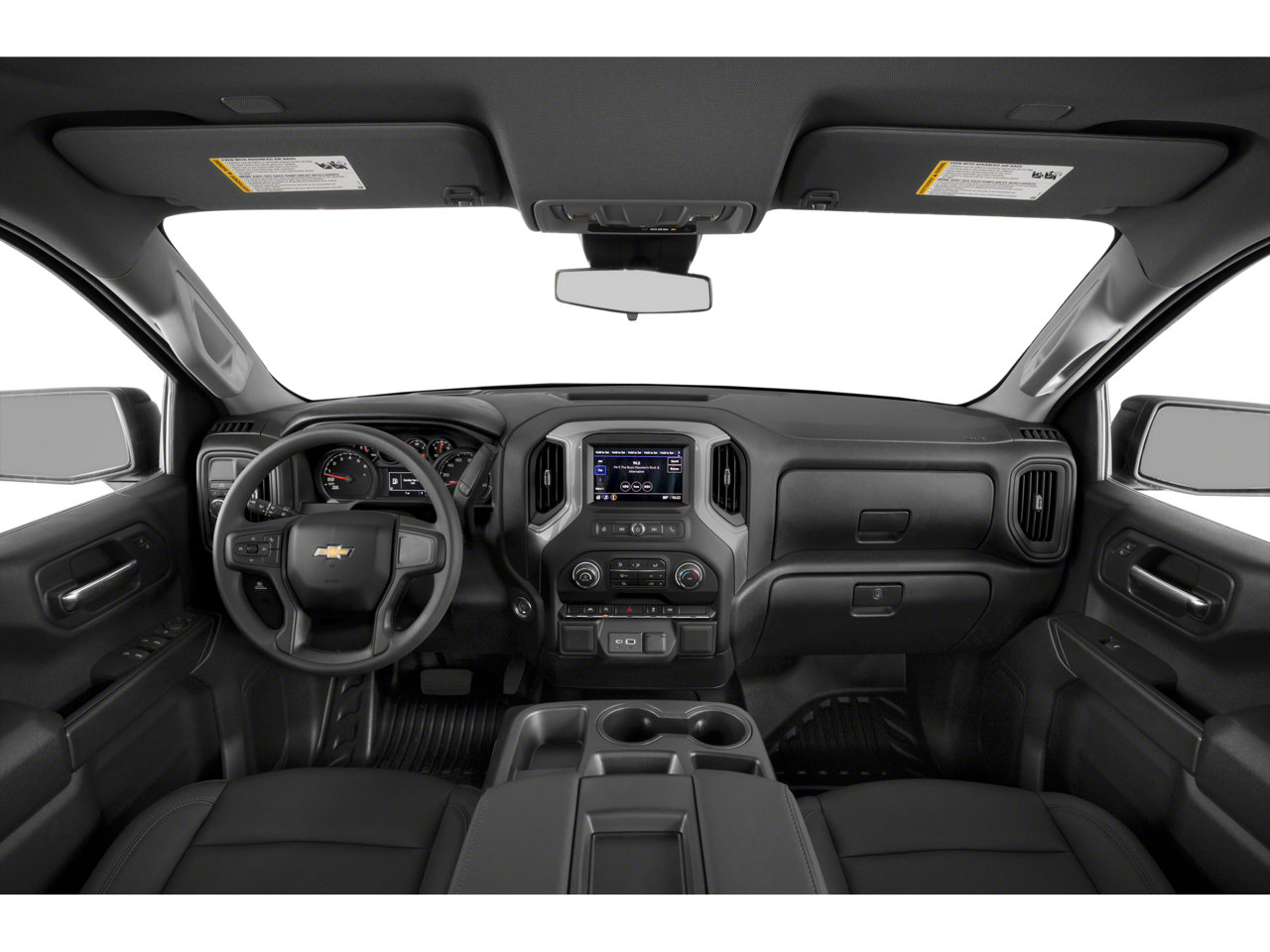

• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 39.88
• Second Leg Room (in): 35.24
• Second Shoulder Room (in): 64.88
• Second Hip Room (in): 60.24
• Summary

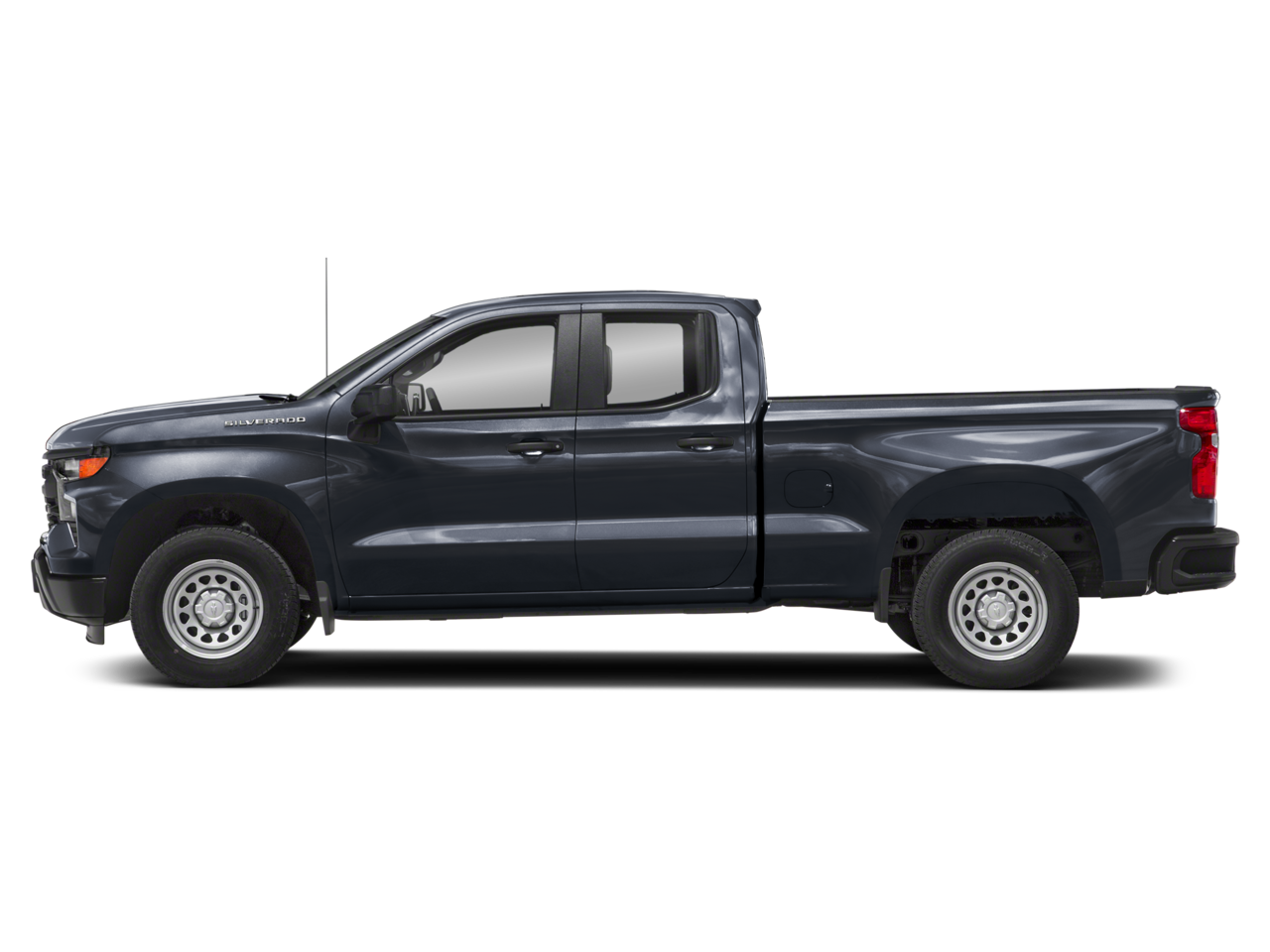

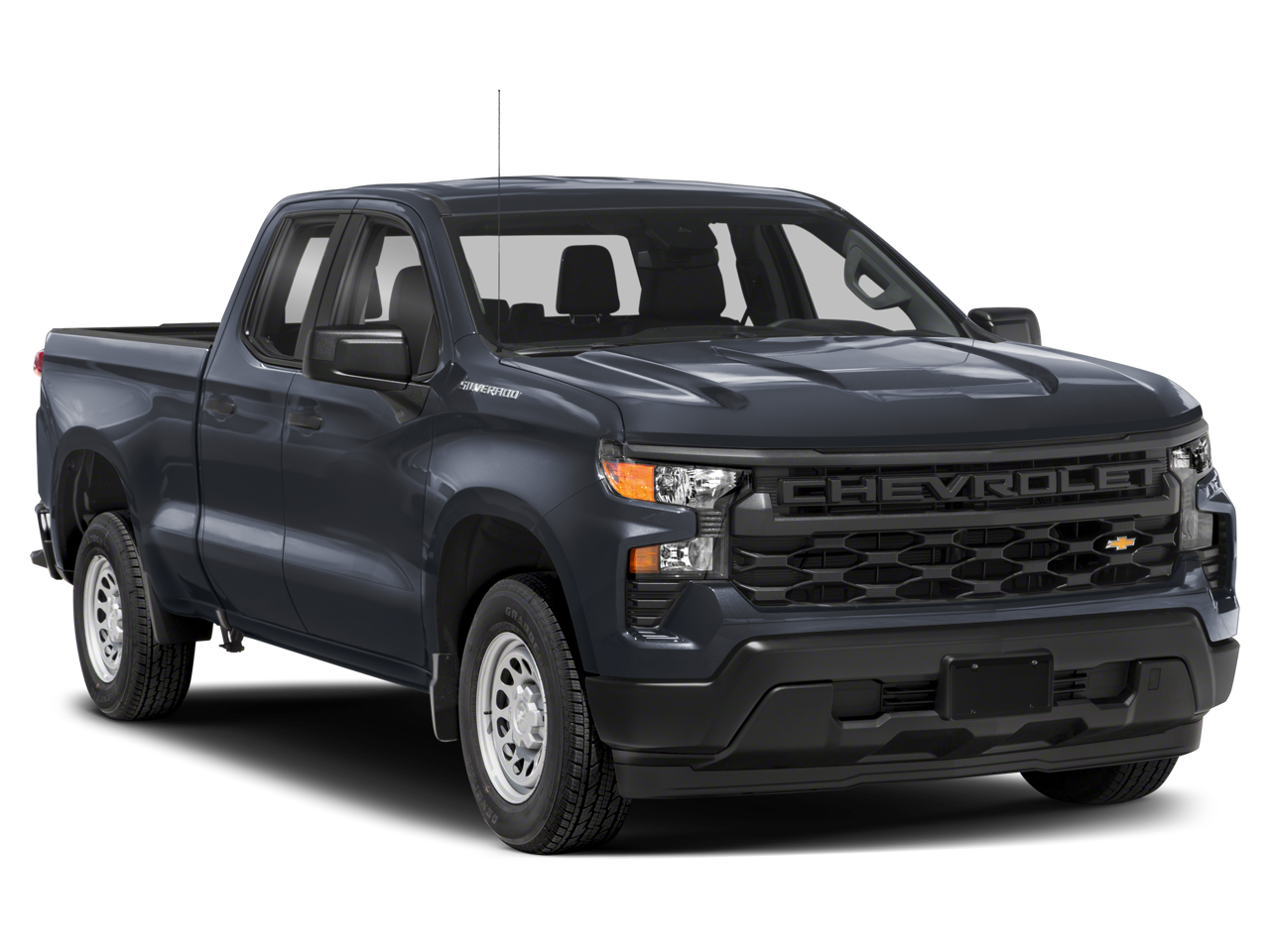

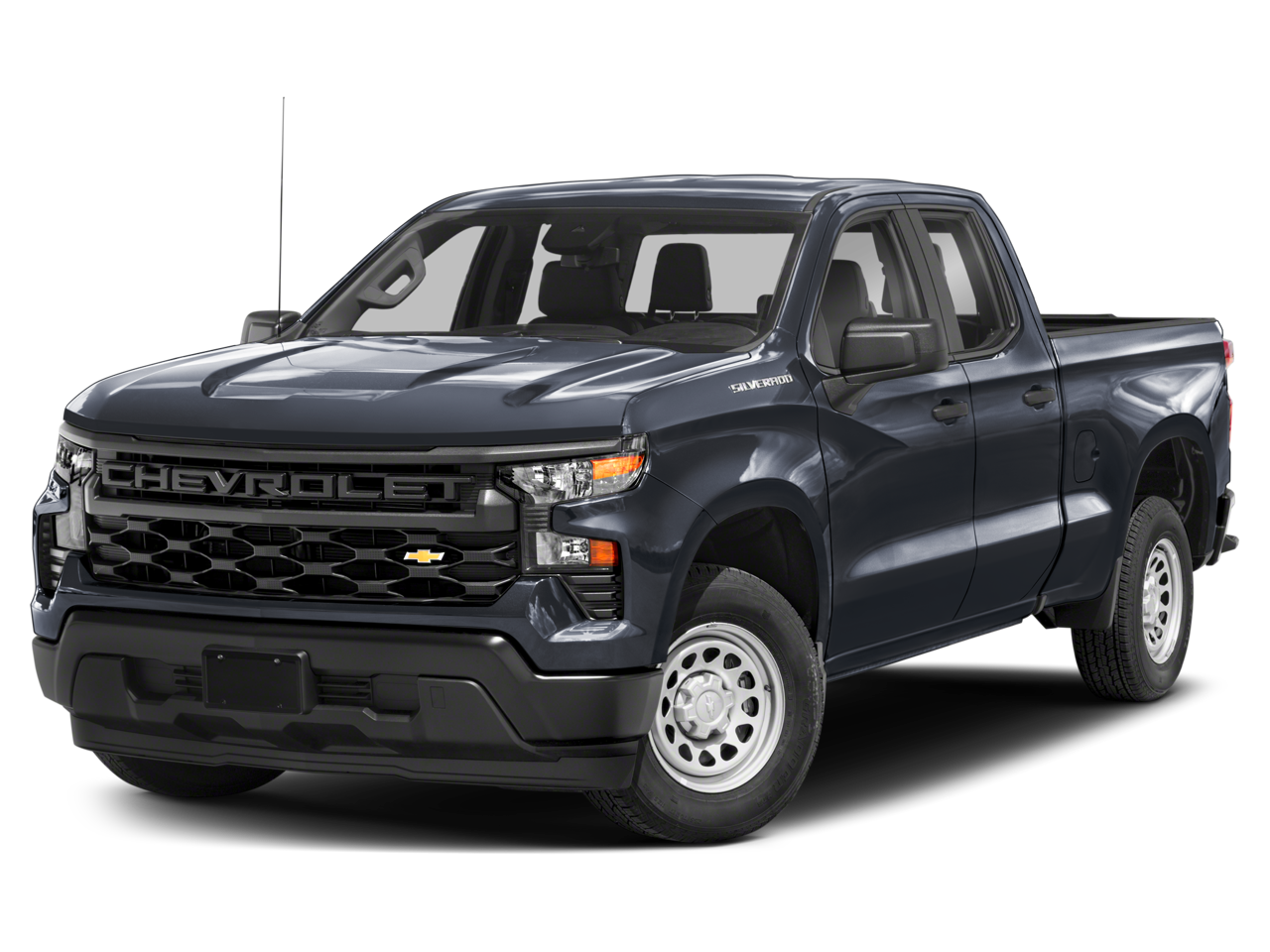

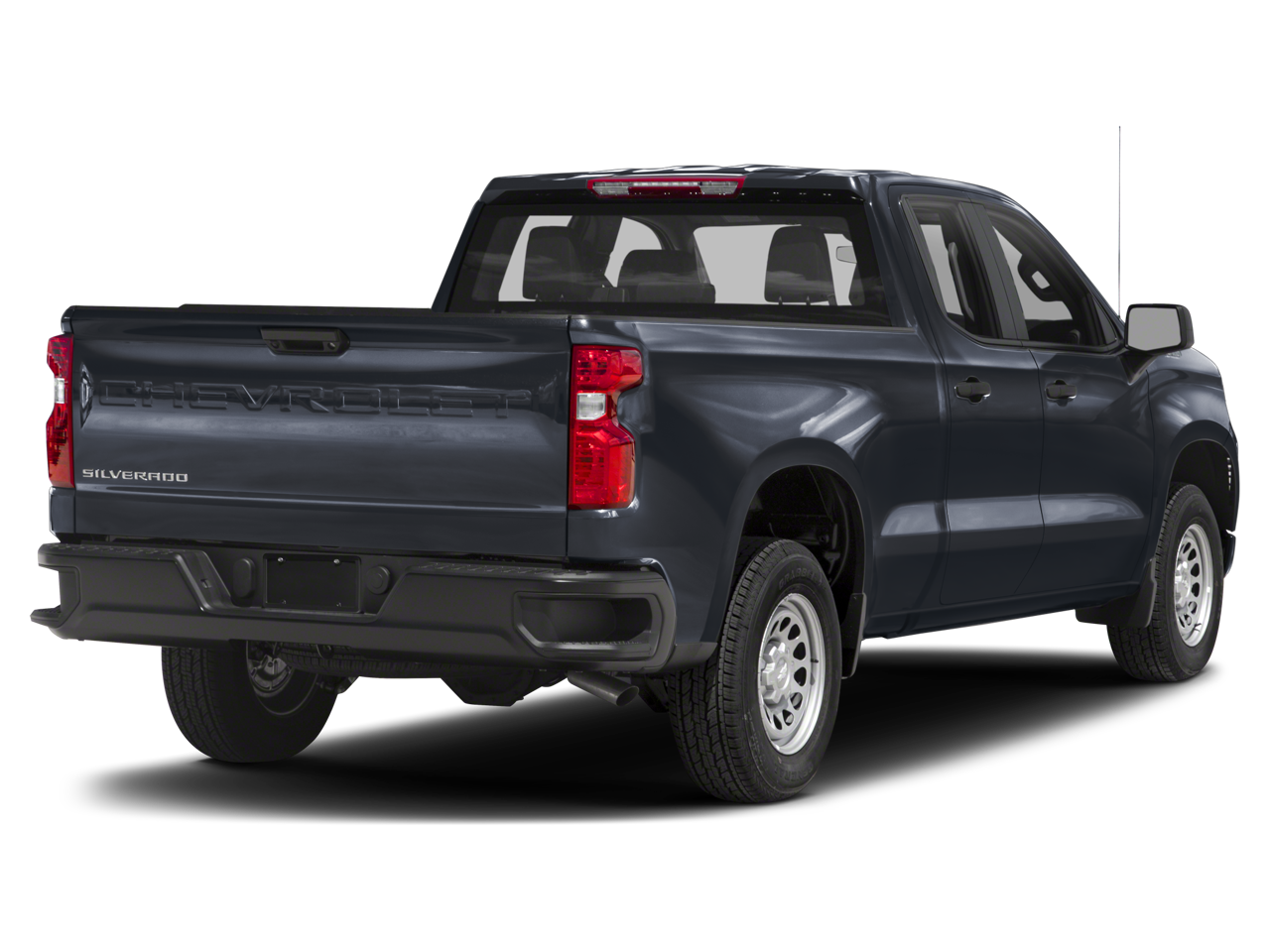

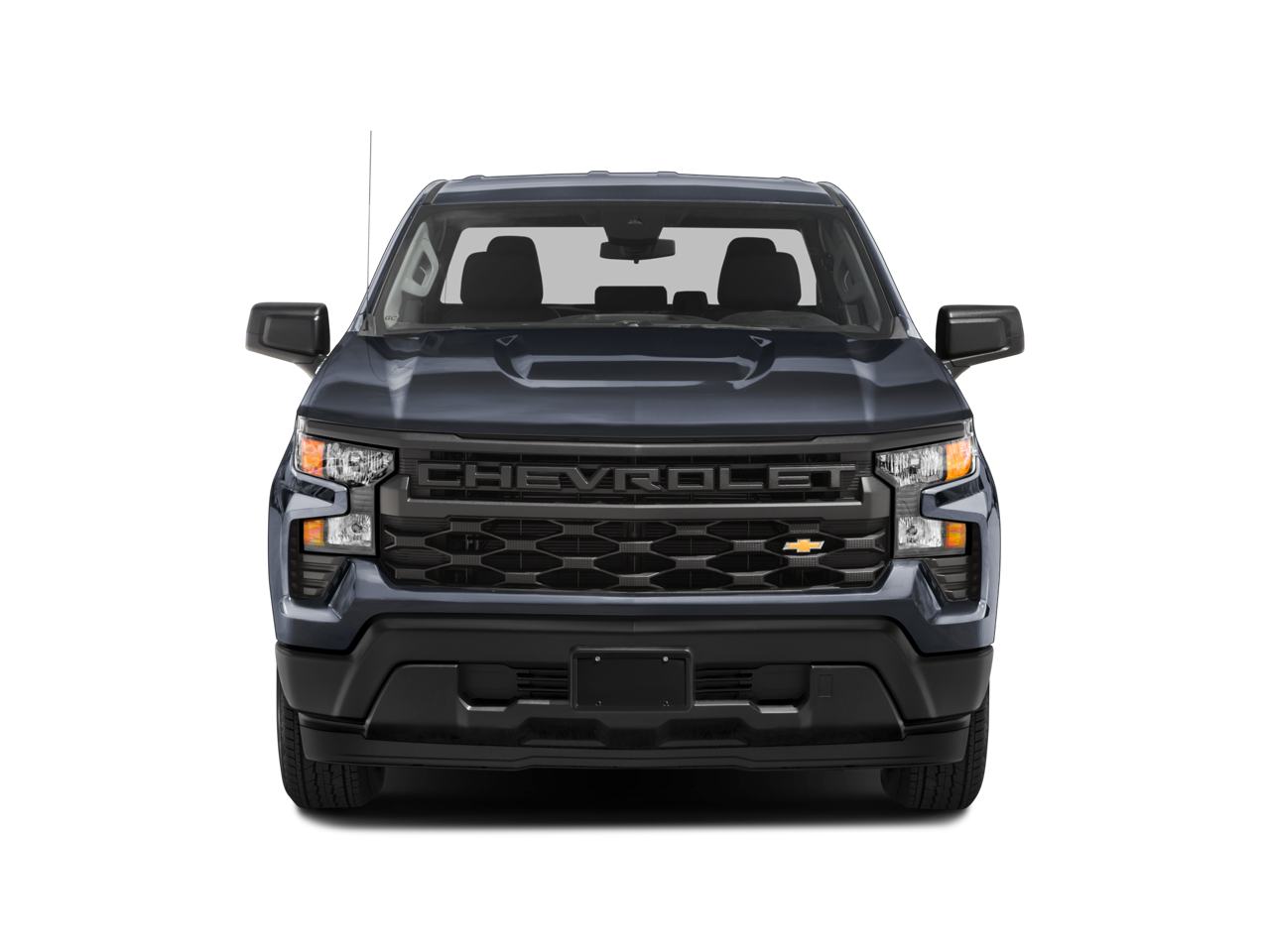

• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Double Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.8
