• Rear axle, 3.73 ratio
• Pickup box, Wideside
• Air cleaner, high-capacity
• Transfer case, with floor-mounted shifter (Requires 4WD models)
• Four wheel drive
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Alternator, 125 amps
• Frame, hydroformed front section
• GVWR, 9200 lbs. (4173 kg)
• Suspension, front independent, torsion bar
• Suspension, rear 2-stage multi-leaf springs semi-elliptic
• Steering, power, recirculating ball
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust aluminized stainless-steel muffler and tailpipe

• Wheels, 16" x 6.5" (40.6 cm x 16.5 cm) 8-lug painted steel includes painted center caps and steel spare (spare wheel will not cosmetically match the other 4 wheels) Spare not included with (ZW9) pickup box delete unless a spare tire is ordered
• Tires, LT245/75R16E all-season, blackwall (Not available with (Z71) Off-Road Suspension Package. Includes 5 tires with (E63) Wideside pickup box. Includes 4 tires with (ZW9) pickup box delete.)
• Tire carrier, outside spare, winch-type mounted under frame at rear (Orders with (ZW9) Pickup box delete will not include a Spare Tire Carrier unless a spare tire is ordered.)
• Recovery hooks, front, frame-mounted
• Bumper, front chrome (Includes Black bumper top caps)
• Bumper, rear chrome, step-style with pad (Requires RPO (E63) wideside pickup box)
• Grille, chrome surround
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Lamps, dual cargo area lamps
• Mirrors, outside manual, Black, manual-folding
• Glass, Solar-Ray light-tinted, all windows
• Wipers, front intermittent wet-arm with pulse washers
• Tailgate protection top of tailgate protection cap

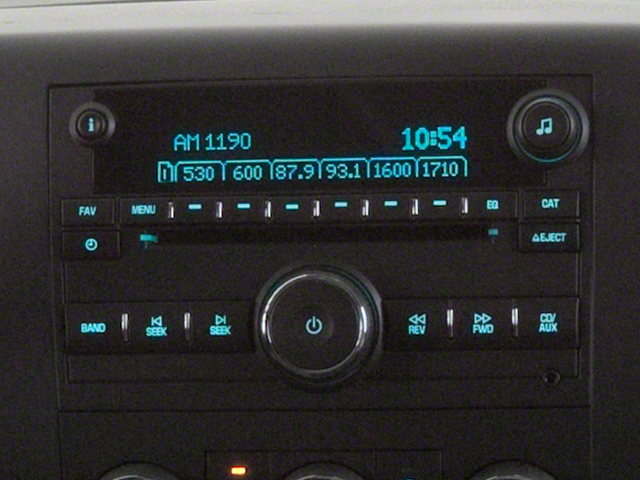

• Audio system, AM/FM stereo with seek-and-scan and digital clock (Not available with (U2K) XM Radio)
• XM Satellite Radio, delete
• Audio system feature, 4-speaker system (Requires Regular Cab models)

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining with outboard head restraints and center fold-down armrest with storage
• Seat trim, Vinyl
• Steering wheel includes theft-deterrent locking feature
• Floor covering, Black rubberized vinyl
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on

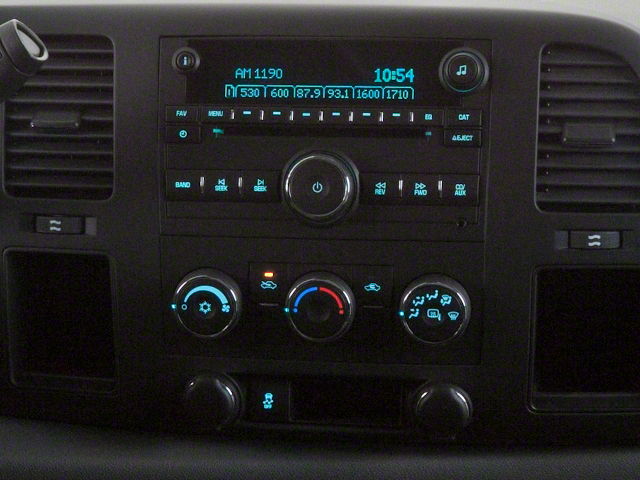

• Air conditioning, single-zone manual front climate control

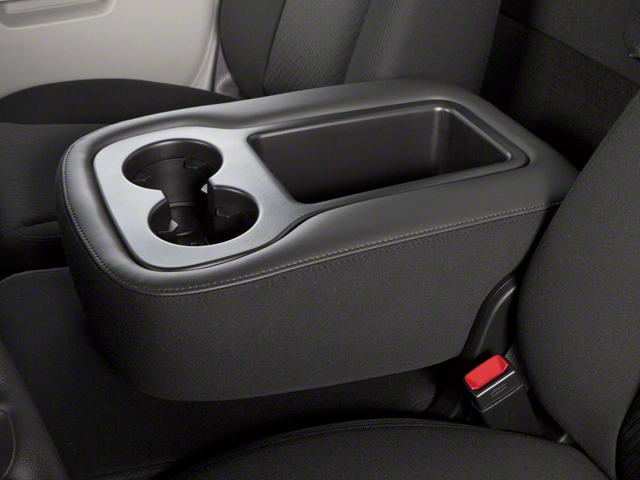

• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models)
• Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt
• Mirror, inside rearview manual day/night
• Headliner, Opal Gray-colored cloth with matching retainer moldings
• Visors, driver and front passenger, sliding with clip and passenger side vanity mirror with cover, Opal Gray-colored
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Coat hooks, rear driver and passenger side

• Daytime Running Lamps with automatic exterior lamp control
• Air bags, frontal, driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owners Manual and child safety seat instructions for more safety information)
• OnStar, delete
• Tire Pressure Monitoring System (does not apply to spare tire)

ENGINE, VORTEC 6.0L V8 SFI

• (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) (STD)

• 16 in. All-Season Blackwall Spare Tire
• Roof Mounted Lamp Provision
• Trailer Brake Controller
• Northeast Emissions Requirements
• Smoked Amber Roof Marker Lamps
• Skid Plate Package
• Coolant Temperature Warning Warnings And Reminders
• Low Oil Pressure Warnings And Reminders
• Lamp Failure Warnings And Reminders
• Auto Delay Off Headlights
• Chrome Front Bumper Color
• Short And Long Arm Front Suspension Type
• Maintenance-free Battery
• 12V Power Outlet(s)
• Chrome Rear Bumper Color
• Auxiliary Oil Cooler
• Stainless Steel Exhaust Tip Color
• 125 Amps Alternator
• Chrome Surround Grille Color
• Diameter 35 Mm Front Stabilizer Bar
• Reclining Passenger Seat Manual Adjustments
• Reclining Driver Seat Manual Adjustments
• 600 CCA Battery Rating
• Rubber/vinyl Floor Material
• Manual Folding Side Mirror Adjustments
• Gas Front Shock Type
• Twin-tube Gas Rear Shock Type
• Adjustable Front Headrests
• Front Seatbelt Warning Sensor
• Heavy Duty Battery
• Battery Saver
• Solar-tinted Glass
• Power Brakes
• Manual Day/night Rearview Mirror
• Front Air Conditioning
• Low Fuel Level Warnings And Reminders
• Auto On Headlights
• Pickup Bed Light
• Black Mirror Color
• Multi-leaf Rear Suspension Type
• 4-wheel ABS
• Maintenance Due Warnings And Reminders
• Tire Pressure Monitoring System
• Power Steering
• Tachometer Gauge
• Dual Front Airbags
• Front Assist Handle
• Vinyl Upholstery
• AM/FM Radio
• 4 Total Speakers
• Ventilated Disc Front Brake Type
• 40-20-40 Split Bench Front Seat Type
• Front Reading Lights
• Steel Spare Wheel Type
• Underbody Spare Tire Mount Location
• 2 Front Headrests
• Intermittent Front Wipers
• Manual Side Mirror Adjustments
• Passenger Vanity Mirrors
• Torsion Bars Front Spring Type
• Front Tow Hooks
• Leaf Rear Spring Type
• Single Front Air Conditioning Zones
• Halogen Headlights
• Manual Hi-lo 4WD Selector
• Solid Live Axle Rear Suspension Classification
• Tilt Steering Wheel
• Part Time 4WD Type
• Daytime Running Lights
• Front Cupholders
• Independent Front Suspension Classification
• Ventilated Disc Rear Brake Type
• Full-size Matching Spare Tire Size
• Heavy-Duty Trailering Equipment
• 16 in. On/Off Road Blackwall Tires
• Snow Plow Prep Package
• Heavy Duty Locking Rear Differential
• 160 Amp Alternator
• License Plate Bracket
• 4.10 Rear Axle Ratio

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4200
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3243
• Curb Weight - Rear (lbs): 2313
• Gross Vehicle Weight Rating Cap (lbs): 9200
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1530
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 10200
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2550
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 4500
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Full Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6900
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.42
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.8
• Rear Brake Rotor Diam x Thickness (in): 13.5 x 0.79
• Tires
• Front Tire Order Code: QIZ
• Rear Tire Order Code: QIZ
• Spare Tire Order Code: ZIZ
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 24:1
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 45.3
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 133.0
• Length, Overall w/o rear bumper (in): 220.2
• Width, Max w/o mirrors (in): 80.0
• Height, Overall (in): 76.3
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 116.5
• Cab to Axle (in): 55.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 37.0
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.5
• Ground Clearance, Rear (in): 11.4
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.8
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 62.5
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.0
• Tailgate Width (in): 61.6
• Cargo Volume (ft³): 75.5
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.4
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 62.5
• Summary
• Vehicle Name: GMC Sierra 2500HD
• Body Style: Reg Cab 8' Fleetside
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
